ABAC PAT38A - Bare Air Compressor Block

This is a bare air compressor block (Pump). It has solid cast iron for the wear and tear parts and aluminum parts, where the heat needs to be dissipated. It is a reliable design for medium-duty industrial applications
Specifications:
Flywheel: 390mm X 1 SPA
Motor needed: 2.2 kW to 3kW (3hp to 4 hp.)
Displacement at 1075 rpm with 2.2 kW motor 393 liter/min.
Displacement at 1300 rpm with 3 kW motor 486 liter/min.
Free air delivery at 1075 rpm 314 liter/min and 1300rpm 388 l/min
Number of pistons: 2
Stages: 1
Piston diameter: 63 mm and 60mm stroke
Maximum pressure: 10 bar
What is an Air Compressor Block?
Also called a reciprocating compressor block or bare piston compressor block, a compressor block is the part doing the compression of the air. A piston moving in a reciprocating motion within the cylinder compresses the gas. It is driven by an electric motor or another form of rotation. The pistons are moving up and down and compress the air from atmospheric pressure up to full tank pressure. As the volume decreases the pressure increases. The gas is then pushed out of the cylinder to the next stage of compression or to the discharge connection.

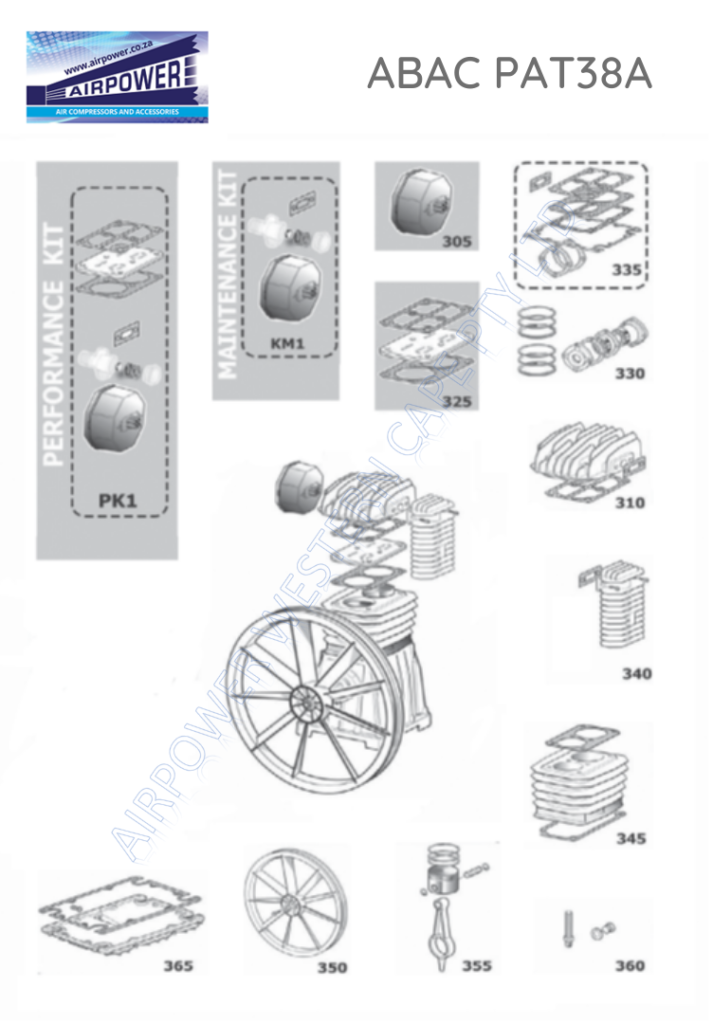

Exploded View

305 Air Filter Complete
310 Cylinder Head Kit
325 Valve Plate Kit
330 Upgrade Kit
335 Gasket Kit
340 Aftercooler
345 Cylinder Gasket Screw Kit
350 Flywheel Kit
355 Piston Conrod Kit single stage
360 Oil Level Kit
365 Crankcase Kit
KM1 Maintenance Kit
PK1 Performance Kit
