ABAC PAT24A - Bare Air Compressor Block


This is a bare compressor block (Pump). It has solid cast iron for the wear and tear parts and aluminum parts, where the heat needs to be dissipated. It is a reliable design for medium-duty industrial applications


Flywheel: 330mm X 1 SPA

Motor needed: 1.5kW to 2.2kW  (2 hp. To 3 hp.)

Displacement at 1075 rpm with 1.5 kW motor 250 liter/min.

Displacement at 1300 rpm with 2.2 kW motor 320 liter/min.

Free air delivery at 1075 rpm 200 liter/min and 1300 rpm 256 liter/min

Number of pistons: 2

Stages: 1

Piston diameter: 63 mm and 40 mm stroke

Maximum pressure: 10 bar

What is an Air Compressor Block?

Also called a reciprocating compressor block or bare piston compressor block, a compressor block is the part doing the compression of the air. A piston moving in a reciprocating motion within the cylinder compresses the gas. It is driven by an electric motor or another form of rotation. The pistons are moving up and down and compress the air from atmospheric pressure up to full tank pressure. As the volume decreases the pressure increases. The gas is then pushed out of the cylinder to the next stage of compression or to the discharge connection.

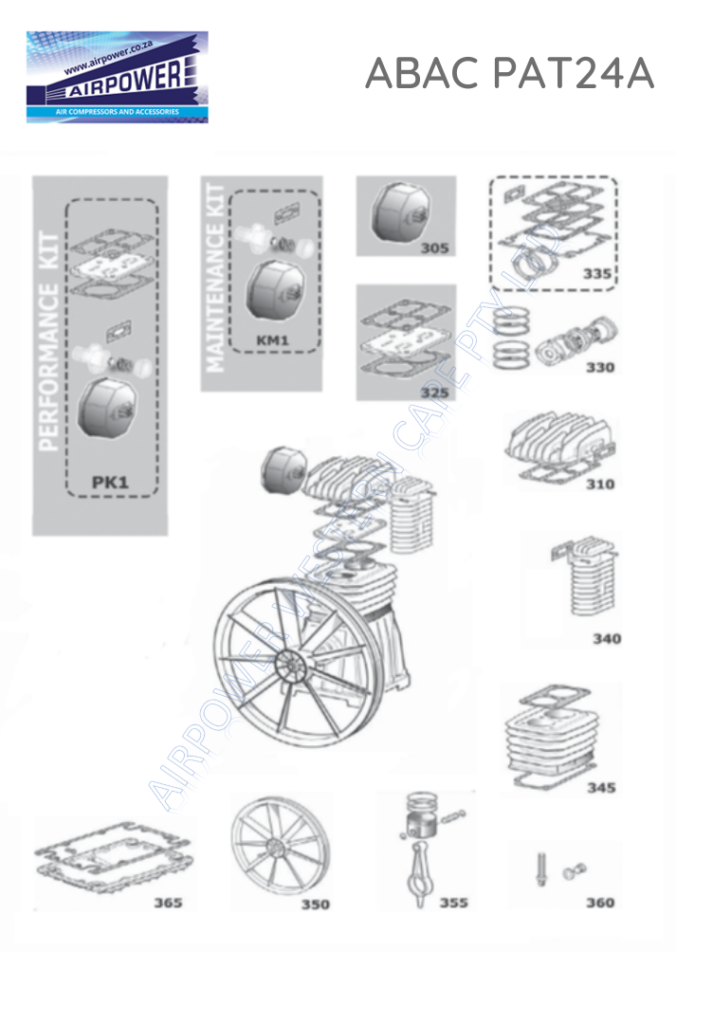

Exploded View


305 Air Filter Complete

310 Cylinder Head Kit

325 Valve Plate Kit

330 Upgrade Kit

335 Gasket Kit

340 Aftercooler Kit

345 Cylinder Gasket Screw Kit

350 Flywheel Kit

355 Piston Conrod Kit single stage

360 Oil Level Kit

365 Crankcase Kit

KM1 Maintenance Kit

PK1 Performance Kit
