TYPE30 5T2NL Air Compressor Block
Product Overview
TYPE30 5T2NL Air Compressor Block
The 5T2NL is an oil-free or non-lube machine, mainly for use in hospitals. Oil can only pass piston rings if the pressure is lower on top of the piston than underneath the piston.
The non-lube machines do have two pistons, running together. In between the two pistons, are always positive compressed air pressure. This air prevents any oil to pass the bottom piston rings and it is impossible for oil to get into the compressed air, delivered by this compressor.
Flywheel: 406mm X 2SPA
Motor needed: 5.5kW – 7.5kW (7.5 hp – 10 hp.)
Displacement at 660 rpm with 5.5 kW motor 744 liter/min
Displacement at 930 rpm with 7.5 kW motor 1050 liter/min.
Free air delivery at 660 rpm 510 liter/min and 762 l/min at 930 rpm
Number of pistons: 2
Stages: 2
Low-pressure piston diameter: 127 mm and stroke 89mm
High-pressure piston diameter: 76.2 mm and stroke 89mm
Maximum pressure: 8.6 bar
MORE DETAILS
Exploded View

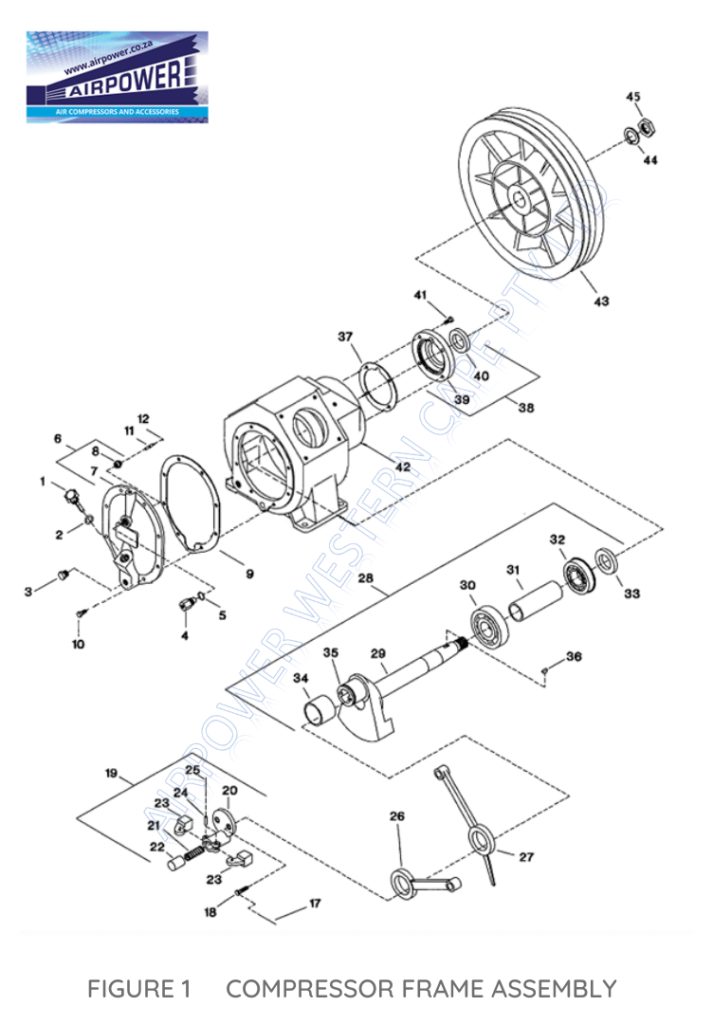

| REF. NBR. | PART NUMBER | DESCRIPTION | UNITS PER ASSY. |
|---|---|---|---|
| 1-1 | 30601106 | PLUG, OIL GAUGE | 1 |
| 1-2 | 35502360 | O-RING-OIL GAUGE PLUG 23.6×3.55 | 1 |
| 1-3 | 30801175 | PLUG, PIPE-HEX HEAD | 1 |
| 1-4 | 30801309 | VALVE PILOT | 1 |
| 1-5 | 30801308 | WASHER, COPPER | 5 |
| 1-6 | 30601103 | ASSEMBLY, FRAME END COVER | 1 |
| 1-7 | 30601104 | COVER, FRAME END | 1 |
| 1-8 | 30801167 | VALVE PILOT | 1 |
| 1-9 | 30601102 | GASKET, FRAME END VALVE | 1 |
| 1-10 | GB5783-86 | CAPSCREW-HEX M10X25 | 8 |
| 1-11 | 30801319 | PIN, THRUST | 1 |
| 1-12 | 18000300 | O-RING 3×1.8 | 1 |
| 1-17 | 30801011 | LOCKWIRE | 1 |
| 1-18 | GB32.1-88 | CAPSCREW-HEX M10X25 | 2 |
| 1-19 | 30801312 | ASSEMBLY, CRANKPIN CAP CENTRIFUGAL UNLOADER | 1 |
| 1-20 | 30801313 | BODY, CRANKPIN CAP | 1 |
| 1-21 | 30801314 | SPRING, CENTRIFUGAL UNLOADER | 1 |
| 1-22 | 30801315 | PLUNGER, CENTRIFUGAL UNLOADER | 1 |
| 1-23 | 30801316 | WEIGHT, CENTRIFUGAL UNLOADER | 2 |
| 1-24 | 30801317 | PIN, CENTRIFUGAL UNLOADER WEIGHT | 2 |
| 1-25 | 30801318 | LOCKWIRE | 1 |
| 1-26 | 30801147 | ROD, CONNECTING-FIRST STAGE LOW PRESSURE | 1 |
| 1-27 | 30601119 | ROD, CONNECTING-SECOND STAGE HIGH PRESSURE | 1 |
| 1-28 | 30699001 | ASSEMBLY, CRANKSHAFT-COMPLETE | 1 |
| 1-29 | 30601132 | ASSEMBLY, DISC AND SHAFT | 1 |
| 1-30 | 30870032 | BEARING, BALL | 1 |
| 1-31 | 30601135 | SPACER, MAIN BEARING | 1 |
| 1-32 | 30870033 | BEARING, BALL-WITH SNAP RING | 1 |
| 1-33 | 30601136 | RING, BEARING RETAINER | 1 |
| 1-34 | 30601131 | BUSHING, CRANKPIN | 1 |
| 1-35 | LOCTITE-TUBE | ||
| 1-36 | 30870030 | KEY, WOODRUFF 6X25 | 1 |
| 1-37 | 30601125 | GASKET-SHAFT END COVER | 1 |
| 1-38 | 30601126 | ASSEMBLY, SHAFT END COVER | 1 |
| 1-39 | 30601128 | COVER, SHAFT END | 1 |
| 1-40 | 30601127 | SEAL, OIL-VITON | 1 |
| 1-41 | GB5783-86 | CAPSCREW-HEX M10X30 | 4 |
| 1-42 | 30601101 | FRAME, COMPRESSOR | 1 |
| 1-43 | 30601124 | WHEEL, V-BELT | 1 |
| 1-44 | GB93-1987 | LOCKWASHER, SPRING-24 | 1 |
| 1-45 | 30601129 | NUT, V-BELT WHEEL | 1 |
| REF. NBR. | PART NUMBER | DESCRIPTION | UNITS PER ASSY. |
|---|---|---|---|

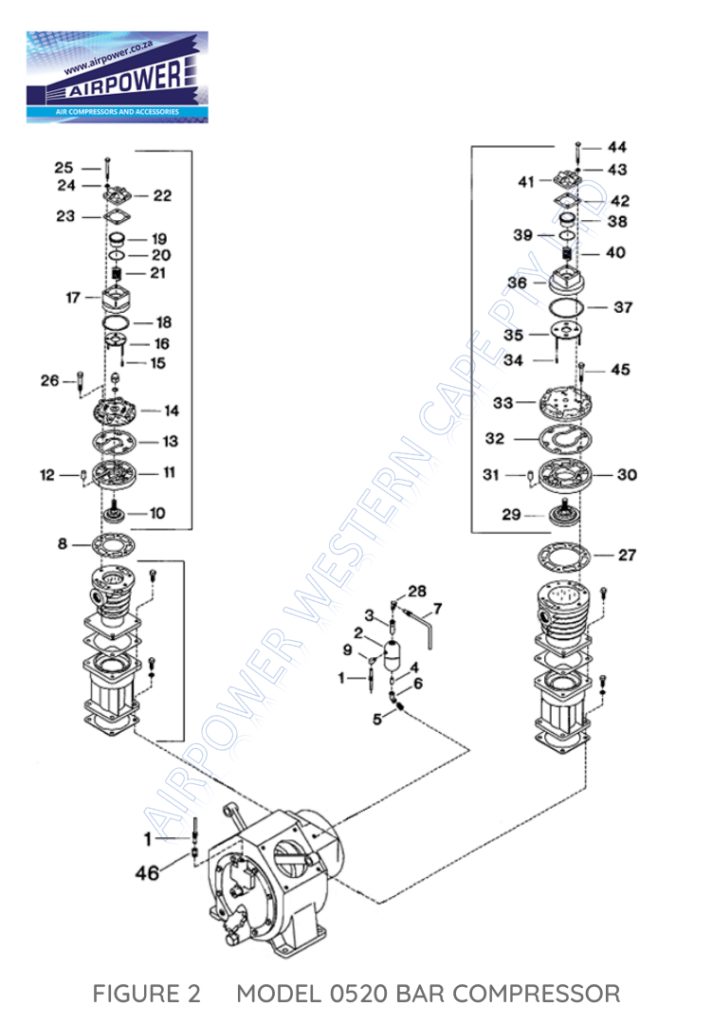

| 2-1 | 30601502 | ASSEMBLY, TUBE-WITH NUTS | 1 |
| 2-2 | 30801802 | BOTTLE, BREATHER TRAP | 1 |
| 2-3 | 30801803 | PLUG, BREATHER ELEMENT | 1 |
| 2-4 | 30801812 | CONNECTOR-TUBE | 1 |
| 2-5 | 30801004 | CONNECTOR-TUBE | 1 |
| 2-6 | 30601501 | ELBOW, TUBE | 1 |
| 2-7 | 30801801 | ASSEMBLY, TUBE-WITH NUTS 1 | 1 |
| 2-8 | 30601116 | GASKET-AIR HEAD TO CYLINDER | 1 |
| 2-9 | 30801321 | ELBOW, TUBE | 1 |
| 2-10 | 30601108 | SECOND STAGE VALVE-CONCENTRIC RING COMPLETE | 1 |
| 2-11 | 30601113 | HEAD-BOTTOM HALF | 1 |
| 2-12 | 30801114 | DOWEL | 1 |
| 2-13 | 30601114 | GASKET-BETWEEN HALVES | 1 |
| 2-14 | 30601115 | HEAD-AIR-TOP HALF | 1 |
| 2-15 | 30801411 | SPRING | 2 |
| 2-16 | 30601304 | PLATE-UNLOADER COMPLETE | 1 |
| 2-17 | 30601303 | BODY-UNLOADER COMPLETE | 1 |
| 2-18 | 30601307 | GASKET-UNLOADER | 1 |
| 2-19 | 30601121 | PISTON-COMPLETE | 1 |
| 2-20 | 35505600 | O-RING 56×3.55 | 1 |
| 2-21 | 30801406 | SPRING | 1 |
| 2-22 | 30801402 | COVER-UNLOADER COMPLETE | 1 |
| 2-23 | 30801403 | GASKET-UNLOADER COVER | 1 |
| 2-24 | 30801001 | WASHER-STELL | 4 |
| 2-25 | GB5782-86 | CAPSCREW-HEX M10×90 | 4 |
| 2-26 | GB5782-86 | CAPSCREW-HEX M12×75 | 6 |
| 2-27 | 30801144 | GASKET-AIR HEAD TO CYLINDER | 1 |
| 2-28 | 30801323 | ELBOW, TUBE | 1 |
| 2-29 | 30801132 | FIRST STAGE VALVE-CONCENTRIC RING COMPLETE | 1 |
| 2-30 | 30801141 | HEAD-BOTTOM HALF | 1 |
| 2-31 | 30801114 | DOWEL | 1 |
| 2-32 | 30801142 | GASKET-BETWEEN HALVES | 1 |
| 2-33 | 30801143 | HEAD-AIR-TOP HALF | 1 |
| 2-34 | 30801411 | SPRING | 3 |
| 2-35 | 30801417 | PLATE-UNLOADER COMPLETE | 1 |
| 2-36 | 30801416 | BODY-UNLOADER COMPLETE | 1 |
| 2-37 | 30801420 | GASKET-UNLOADER | 1 |
| 2-38 | 30801404 | PISTON-COMPLETE | 1 |
| 2-39 | 35505600 | O-RING 56×3.55 | 1 |
| 2-40 | 30801406 | SPRING | 1 |
| 2-41 | 30801402 | COVER-UNLOADER COMPLETE | 1 |
| 2-42 | 30801403 | GASKET-UNLOADER COVER | 1 |
| 2-43 | 30801001 | WASHER-STELL | 4 |
| 2-44 | GB5782-86 | CAPSCREW-HEX M10×90 | 4 |
| 2-45 | GB5782-86 | CAPSCREW-HEX M12×75 | 6 |
| 2-46 | 30800002 | CONNECTOR-TUBE | 1 |
| REF. NBR. | PART NUMBER | DESCRIPTION | UNITS PER ASSY. |
|---|---|---|---|

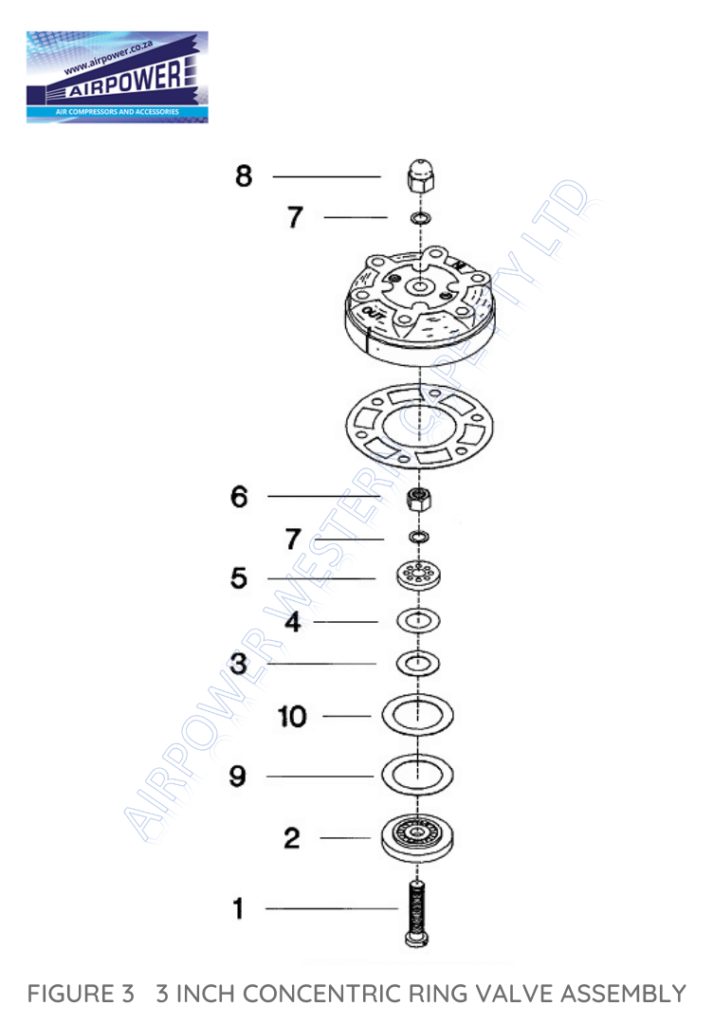

| 3-1 | 30801109 | VALVE BOLT | 1 |
| 3-2 | 30601109 | DISCHARGE VALVE SEAT | 1 |
| 3-3 | 30601110 | DISCHARGE VALVE PLATE | 1 |
| 3-4 | 30601111 | DISCHARGE VALVE SPRING | 1 |
| 3-5 | 30601112 | STOP PLATE | 1 |
| 3-6 | GB6171-86 | NUT M16 | 1 |
| 3-7 | GB955-87 | BELLEVILLE WASHER 16 | 2 |
| 3-8 | 30801110 | ACORN NUT M16x1.5 | 1 |
| 3-9 | 30801137 | INLET VALVE SPRING | 1 |
| 3-10 | 30801136 | INLET VALVE PLATE | 1 |
| REF. NBR. | PART NUMBER | DESCRIPTION | UNITS PER ASSY. |
|---|---|---|---|

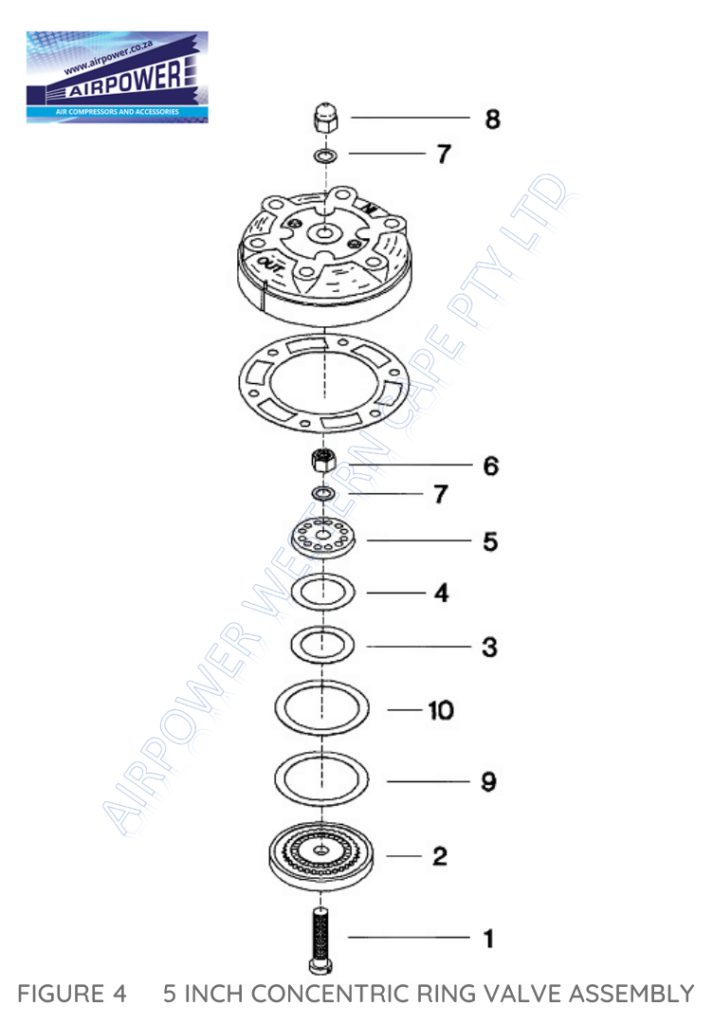

| 4-1 | 30801139 | VALVE BOLT | 1 |
| 4-2 | 30801133 | DISCHARGE VALVE SEAT | 1 |
| 4-3 | 30801136 | DISCHARGE VALVE PLATE | 1 |
| 4-4 | 30801137 | DISCHARGE VALVE SPRING | 1 |
| 4-5 | 30801138 | STOP PLATE | 1 |
| 4-6 | GB6171-86 | NUT M20 | 1 |
| 4-7 | GB955－86 | BELLEVILLE WASHER 20 | 2 |
| 4-8 | 30801140 | ACORN NUT M20x1.5 | 1 |
| 4-9 | 30801134 | INLET VALVE SPRING | 1 |
| 4-10 | 30801135 | INLET VALVE PLATE | 1 |
| REF. NBR. | PART NUMBER | DESCRIPTION | UNITS PER ASSY. |
|---|---|---|---|

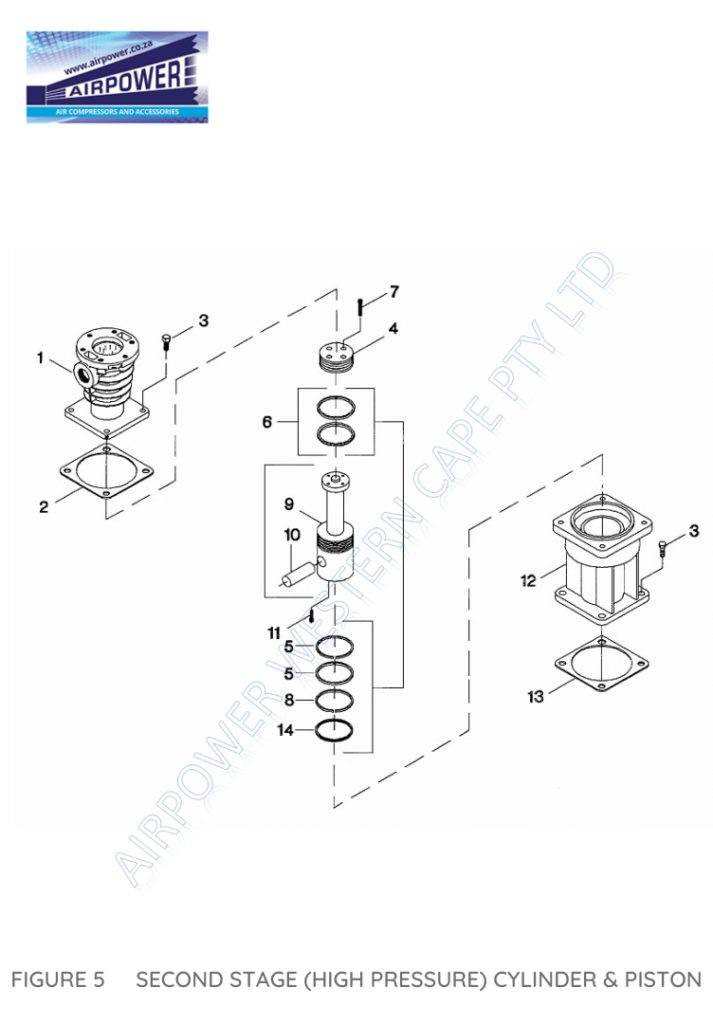

| 5-1 | 30601117 | CYLINDER , AIR-SECOND STAGE | 1 |
| 5-2 | 30801153 | GASKET, FLANGE | 1 |
| 5-3 | GB5783-86 | CAPSCREW HEX- M12X35 | 8 |
| 5-4 | 30601121 | PISTON | 1 |
| 5-5 | 30801127 | PISTON RING | 2 |
| 5-6 | 30601123 | PISTON RING | 2 |
| 5-7 | GB70-85 | CAPSCREW-HOLLOW HEX HEAD | 4 5- |
| 5-8 | 30801128 | PISTON RING | 1 |
| 5-9 | 30801122 | CROSSHEAD PISTON ASSY. | 1 |
| 5-10 | 30801123 | PIN, CROSSHEAD | 1 |
| 5-11 | GB77-85 | SET SCREW-HOLLOW HEAD CUP POINT | 2 |
| 5-12 | 30801154 | GUIDE-CROSSHEAD | 1 |
| 5-13 | 30801156 | GASKET, FLANGE | 1 |
| 5-14 | 30899004 | PISTON RING | 1 |
| REF. NBR. | PART NUMBER | DESCRIPTION | UNITS PER ASSY. |
|---|---|---|---|

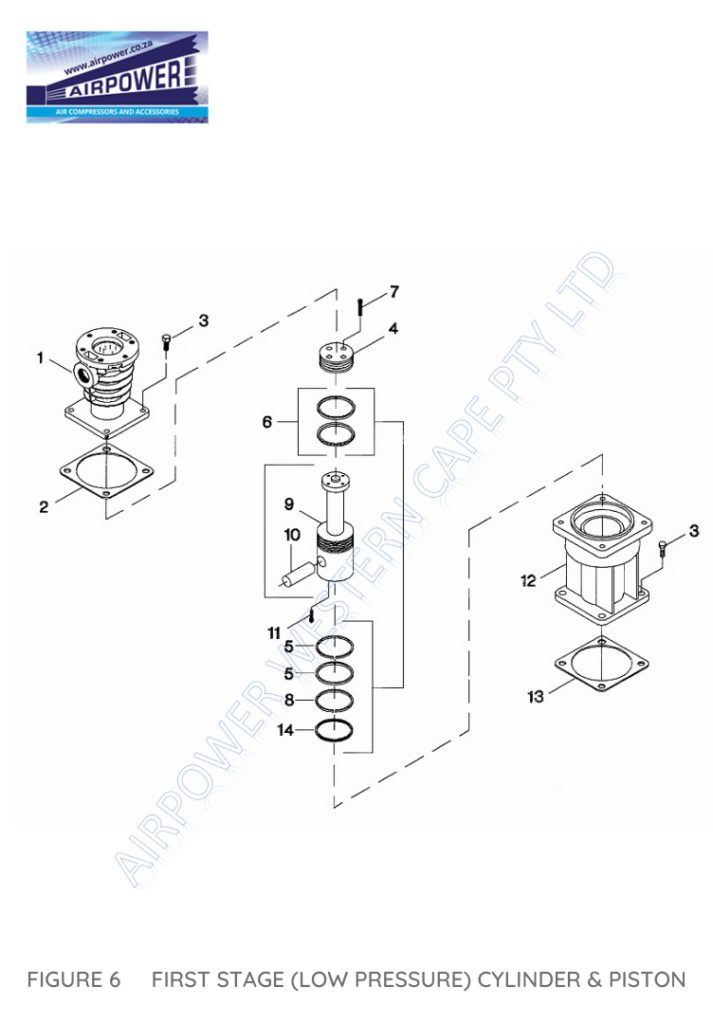

| 6-1 | 30801145 | CYLINDER , AIR-SECOND STAGE | 1 |
| 6-2 | 30801153 | GASKET, FLANGE | 1 |
| 6-3 | GB5783-86 | CAPSCREW HEX- M12X35 | 8 |
| 6-4 | 30801151 | PISTON | 1 |
| 6-5 | 30801127 | PISTON RING | 2 |
| 6-6 | 30801152 | PISTON RING | 1 |
| 6-7 | GB70-1985 | CAPSCREW-HOLLOW HEX HEAD | 4 |
| 6-8 | 30801128 | PISTON RING | 1 |
| 6-9 | 30801122 | CROSSHEAD PISTON ASSY. | 1 |
| 6-10 | 30801123 | PIN, CROSSHEAD | 1 |
| 6-11 | GB77-1985 | SET SCREW-HOLLOW HEAD CUP POINT | 2 |
| 6-12 | 30801154 | GUIDE-CROSSHEAD | 1 |
| 6-13 | 30801156 | GASKET, FLANGE | 1 |
| 6-14 | 30899004 | PISTON RING | 1 |
| REF. NBR. | PART NUMBER | DESCRIPTION | UNITS PER ASSY. |
|---|---|---|---|

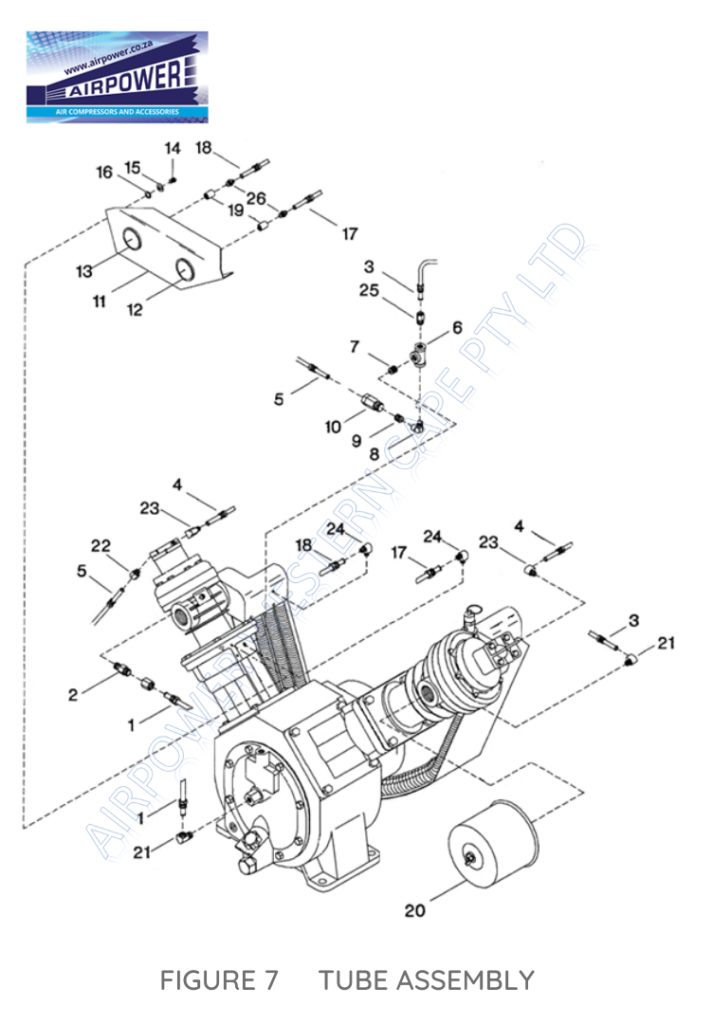

| 7-1 | 30601401 | ASSEMBLY, TUBE-WITH NUTS | 1 |
| 7-2 | 30801301 | VALVE-CYLINDER RELIEF | 1 |
| 7-3 | 30601602 | ASSEMBLY, TUBE-WITH NUTS | 1 |
| 7-4 | 30601301 | ASSEMBLY, TUBE-WITH NUTS | 1 |
| 7-5 | 30601601 | ASSEMBLY, TUBE-WITH NUTS | 1 |
| 7-6 | 30801322 | TEE-PIPE 1/4 IN | 1 |
| 7-7 | 30801002 | NIPPLE-PIPE 1/4 IN | 1 |
| 7-8 | 30801524 | ELBOW-PIPE 1/4 IN | 1 |
| 7-9 | 30801010 | NIPPLE-PIPE 1/8 IN | 1 |
| 7-10 | 30801905 | VALVE-CHECK | 1 |
| 7-11 | 30601701 | PANEL-GAUGE | 1 |
| 7-12 | 30870002 | GAUGE-PRESSURE-DISTANCE PIECE | 1 |
| 7-13 | 30870001 | GAUGE-PRESSURE-INTERCOOLER | 1 |
| 7-14 | GB5783-86 | CAPSCREW-HEX M6 | 12 |
| 7-15 | GB97-87 | WASHER, FLAT-6 | 12 |
| 7-16 | GB93-87 | LOCKWASHER, SPRING-6 | 12 |
| 7-17 | 30801612 | TUBE ASM-DISTANCE PIECE TO GAUGE | 1 |
| 7-18 | 30801612 | TUBE ASM-INTERCOOLER TO GAUGE | 1 |
| 7-19 | 30801603 | COUPLING-PIPE | 2 |
| 7-20 | 30804000 | FILTER COMPLETE-INLET | 1 |
| 7-21 | 30801321 | ELBOW, TUBE | 3 |
| 7-22 | 30800007 | CONNECTOR-TUBE | 1 |
| 7-23 | 30801423 | ELBOW, TUBE | 3 |
| 7-24 | 30801613 | CONNECTOR-TUBE | 2 |
| 7-25 | 30800002 | CONNECTOR-TUBE | 3 |
| 7-26 | 30801605 | CONNECTOR-TUBE | 2 |
| REF. NBR. | PART NUMBER | DESCRIPTION | UNITS PER ASSY. |
|---|---|---|---|

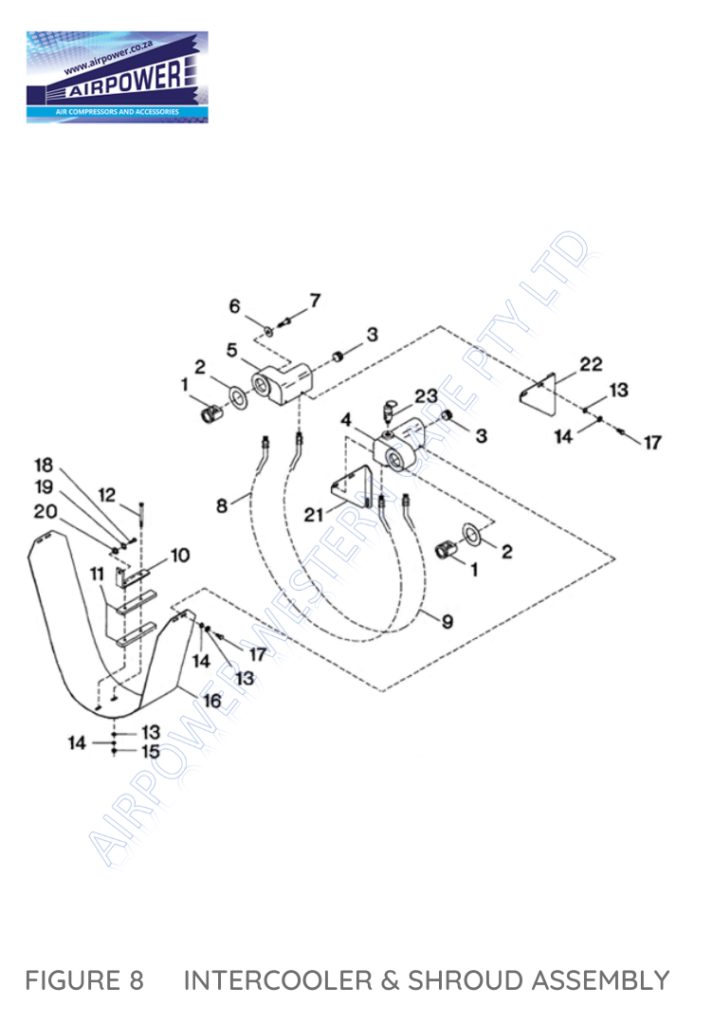

| 8-1 | 30801008 | CONNECTION,MANIFOLD | 2 |
| 8-2 | 30801007 | GASKET, INTERCOOLER | 2 |
| 8-3 | 30601202 | PLUG-PIPE COUNTER | 2 |
| 8-4 | 30601201 | MANIFOLD, INTERCOOLER- LOW PRESSURE | 1 |
| 8-5 | 30601203 | MANIFOLD, INTERCOOLER- HIGH PRESSURE | 1 |
| 8-6 | 30801009 | WASHER, COPPER | 2 |
| 8-7 | GB5783-86 | CAPSCREW-HEX M12×35 | 2 |
| 8-8 | 30601207 | ASSEMBLY, INTERCOOLER TUBE-FINNED-#1 | 3 |
| 8-9 | 30601208 | ASSEMBLY, INTERCOOLER TUBE-FINNED-#2 | 3 |
| 8-10 | 30601204 | BRACKET, INTERCOOLER | 1 |
| 8-11 | 30601205 | CLAMP, INTERCOOLER TUBE | 3 |
| 8-12 | GB5782-86 | CAPSCREW-HEX M6×65 | 2 |
| 8-13 | GB97-87 | WASHER, FLAT-6 | 12 |
| 8-14 | GB93-87 | LOCKWASHER, SPRING-6 | 12 |
| 8-15 | GB6170-86 | NUT, HEX-M6 | 2 |
| 8-16 | 30601206 | SHROUD, INTERCOOLER | 1 |
| 8-17 | GB5783-86 | CAPSCREW-HEX M6×16 | 2 |
| 8-18 | GB5783-86 | CAPSCREW-HEX M8×20 | 1 |
| 8-19 | GB97-87 | WASHER, FLAT-8 | 1 |
| 8-20 | GB93-87 | LOCKWASHER, SPRING-8 | 1 |
| 8-22 | 30601001 | 30601001 | 1 |
| 8-23 | 30870003 | VALVE, RELIEF-57PSIG | 1 |
