Chinook K30 for Heavy Industrial Applications
Product Overview
Chinook K30 for Heavy Industrial Applications
This is a Chinook bare air compressor block (Pump) with solid cast iron wear parts and aluminum parts where heat needs to be dissipated.
Designed for heavy industrial applications.
Flywheel: 385 mm x 1 SPB.
Cylinder: 727 cc.
Motor needed: 4 kW to 5.5 kW (5.5 hp to 7.5 hp).
Displacement: 727 litre/min at 1000 rpm and 1018 litre/min at 1400 rpm.
Free air delivery: 582 litre/min at 1000 rpm and 784 litre/min at 1400 rpm.
Pistons: 2.
Stages: 2.
Low-pressure piston: 105 mm diameter, 84 mm stroke.
High-pressure piston: 52 mm diameter, 84 mm stroke.
Maximum pressure: 12 bar.
MORE DETAILS

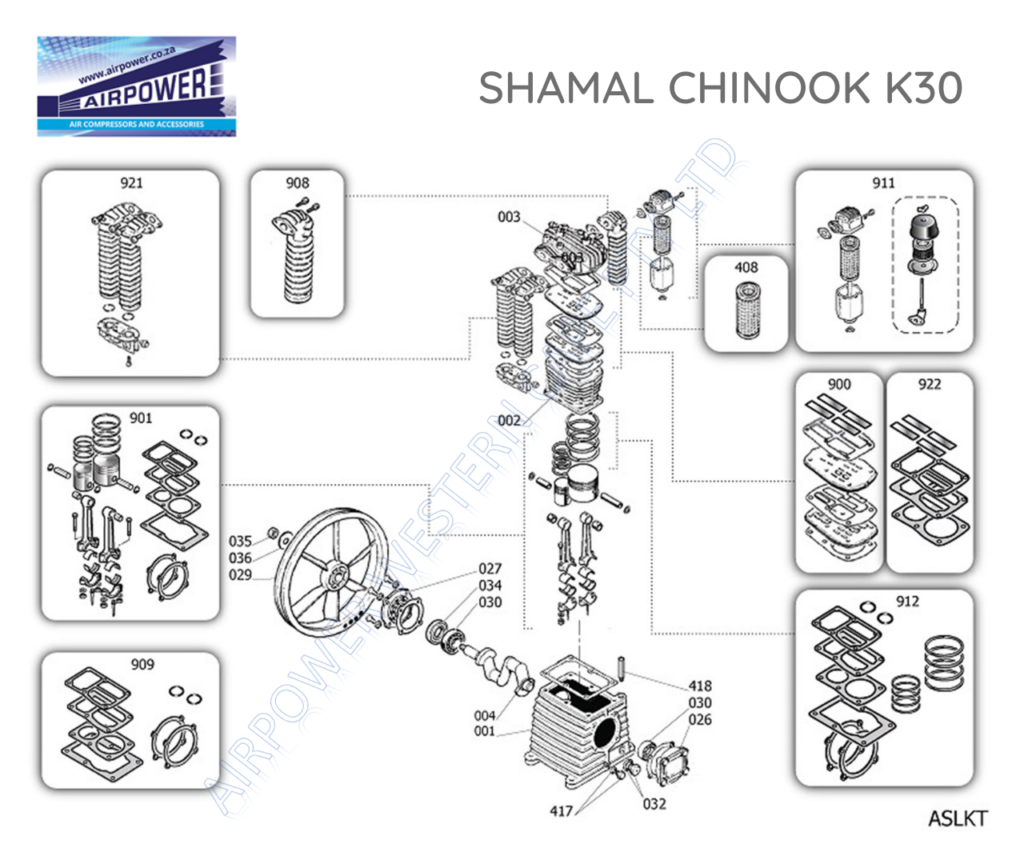

Exploded View
| Position | Code | Description |
|---|---|---|
| 1 | $33102030 | CARTER |
| 2 | $31602020SGL | CILINDRO |
| 3 | SL61400 | TESTA |
| 4 | SL61200 | ALBERO |
| 26 | $30402740 | COPERCHIO ANTERIORE |
| 27 | $30402800 | SUPPORTO POSTERIORE CARTER |
| 29 | $31002680 | VOLANO |
| 30 | $30302140 | CUSCINETTO 6206 C3 |
| 32 | $36531150 | SPIA LIVELLO OLIO |
| 34 | $30302150 | ANELLO DI TENUTA |
| 35 | $37403780 | VITE VOLANO |
| 36 | $37502450 | RONDELLA VOLANO |
| 408 | 9434N04 | MPK ELEM.FILTR.ROT K17-K100 |
| 417 | $36531140 | TAPPO SCARICO OLIO |
| 418 | $12505950 | KIT TAPPO SFIATO |
| 900 | 9434A14 | MPK PIASTRA VALVOLE K30 |
| 901 | 9434B18 | MPK PISTONE-BIELLA K30 |
| 908 | 9434E07 | MPK COLLETTORE K30 |
| 909 | 9434F15 | MPK GUARNIZIONI K30 |
| 911 | 9421127 | KIT FILTRO ARIA |
| 912 | 9434C17 | MPK SEGMENTI K30 |
| 921 | 9434D03 | MPK COLL.INTERMEDIO K30-60 |
| 922 | 9434H07 | MPK MANUT.PV K30-K60 |
