Chinook K100 for Heavy Industrial Applications

Chinook k100

This is a Chinook bare air compressor block (Pump). It has solid cast iron for the wear and tear parts and aluminum parts, where the heat needs to be dissipated. It is a reliable design for heavy industrial applications.

Specifications:

Flywheel: 550 mm X 2SPB

Cylinder: 2148 cc

Motor needed: 15kW to 18.75kW  (20 hp. To 25 hp.)

Displacement at 1000 rpm with 15 kW motor: 2148 liter/min.

Displacement at 1200 rpm with 18.75 kW motor: 2578 liter/min.

Free air delivery at 1000 rpm: 1654 liter/min and 1933 at 1200 rpm.

Number of pistons: 4

Stages: 2

Low pressure piston diameter: 120 mm and stroke 95mm

High pressure piston diameter: 60 mm and stroke 95mm

Maximum pressure: 12 bar

Low pressure piston diameter: 105 mm and stroke 84mm

High pressure piston diameter: 52 mm and stroke 84mm

Maximum pressure: 12 bar

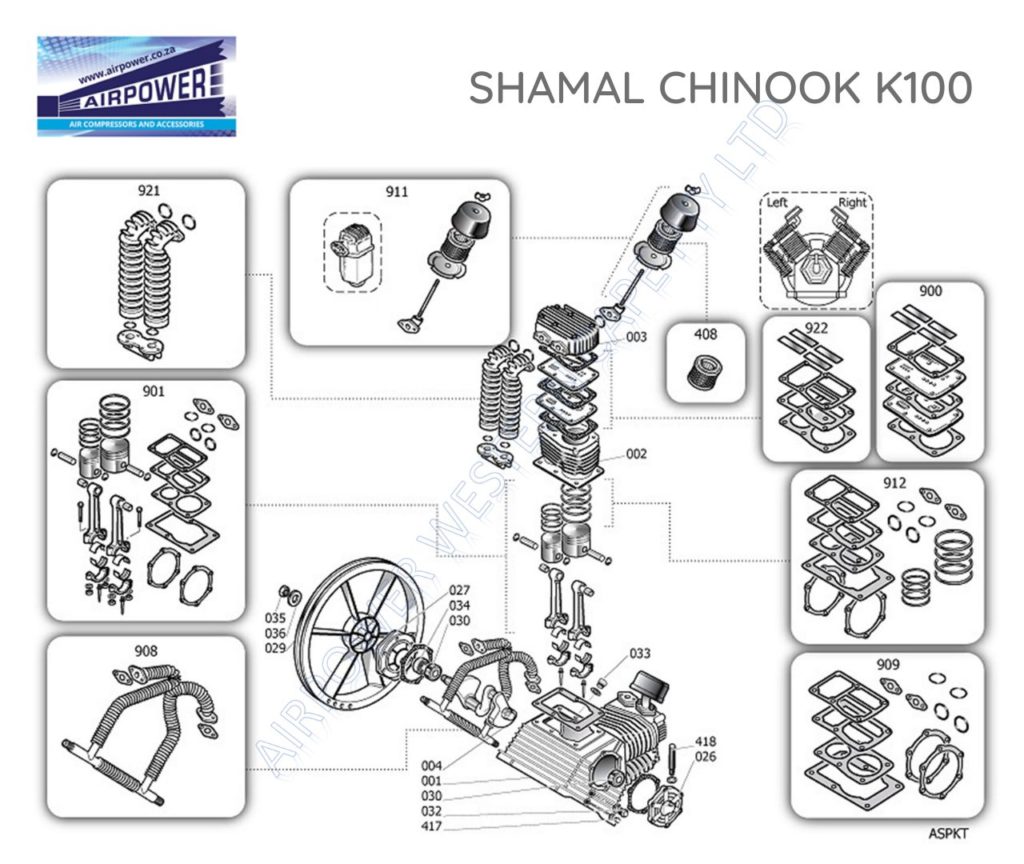

Exploded View

Air compressor manual
Air compressor manual
