Chinook K11 for Heavy Industrial Applications
This is a Chinook bare air compressor block (Pump) designed for heavy industrial applications.
Flywheel: 260 mm x 1 SPA.
Motor needed: 1.1 kW to 1.5 kW (1.5 hp to 2 hp).
Displacement at 1000 rpm with 1.1 kW motor: 220 litre/min.
Free air delivery at 1000 rpm: 154 litre/min.
The Chinook range uses solid cast iron for wear parts and aluminum parts where heat needs to be dissipated.
MORE DETAILS

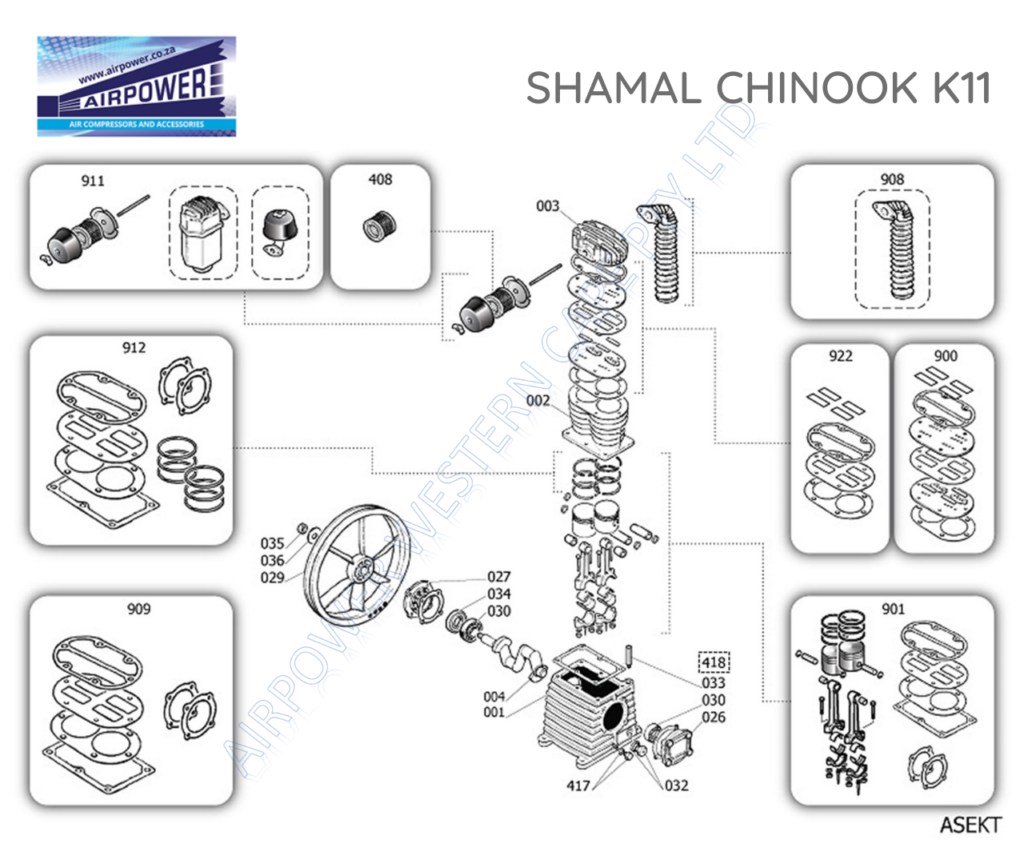

Exploded View
| Position | Code | Description |
|---|---|---|
| 1 | $33100500 | CARTER |
| 2 | $31600520SGL | CILINDRO |
| 3 | SC61400 | TESTA |
| 4 | SC61200 | ALBERO |
| 26 | $30400830 | COPERCHIO ANTERIORE |
| 27 | $30400890 | SUPPORTO POSTERIORE CARTER |
| 29 | SC00100 | VOLANO |
| 30 | $30300030 | CUSCINETTO 6205 C3 |
| 32 | $36531150 | SPIA LIVELLO OLIO |
| 33 | $36507050 | TAPPO OLIO |
| 34 | $30300040 | ANELLO DI TENUTA |
| 35 | $37400720 | VITE VOLANO |
| 36 | $37500730 | RONDELLA VOLANO |
| 408 | 9434N02 | MPK ELEM.FILTR.K3-K18 |
| 417 | $36531140 | TAPPO SCARICO OLIO |
| 900 | 9434A09 | MPK PIASTRA VALVOLE K11 |
| 901 | 9434B13 | MPK PISTONE-BIELLA K11 |
| 909 | 9434F10 | MPK GUARNIZIONI K11 |
| 911 | 9421509 | KIT FILTRO ARIA |
| 912 | 9434C12 | MPK SEGMENTI K11 |
| 922 | 9434H02 | MPK MANUT.PV K11 |
