Chinook K18 for Heavy Industrial Applications
This is a Chinook bare air compressor block (Pump) with solid cast iron wear parts and aluminum parts where heat needs to be dissipated.
Designed for heavy industrial applications.
Flywheel: 320 mm x 1 SPA.
Cylinder: 385 cc.
Motor needed: 2.2 kW to 3 kW (3 hp to 4 hp).
Displacement: 385 litre/min at 1000 rpm and 539 litre/min at 1400 rpm.
Free air delivery: 277 litre/min at 1000 rpm and 378 litre/min at 1400 rpm.
Pistons: 2.
Stages: 1.
Maximum pressure: 10 bar.
MORE DETAILS

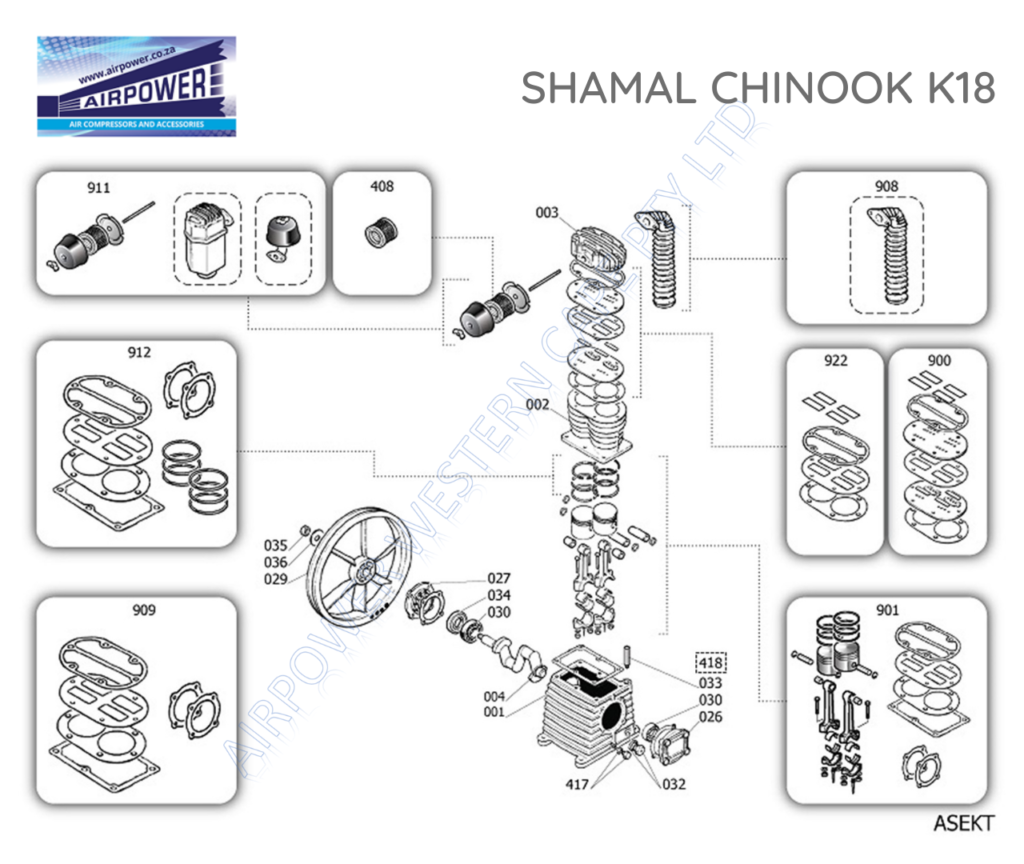

Exploded View
| Position | Code | Description |
|---|---|---|
| 1 | $33101160 | CARTER |
| 2 | $31601300SGL | CILINDRO |
| 3 | SE61400 | TESTA |
| 4 | SC61200 | ALBERO |
| 26 | $30400830 | COPERCHIO ANTERIORE |
| 27 | $30400890 | SUPPORTO POSTERIORE CARTER |
| 29 | $31004680 | VOLANO |
| 30 | $30300030 | CUSCINETTO 6205 C3 |
| 32 | $36531150 | SPIA LIVELLO OLIO |
| 33 | $3650030A | TAPPO OLIO |
| 34 | $30300040 | ANELLO DI TENUTA |
| 35 | $37400720 | VITE VOLANO |
| 36 | $37500730 | RONDELLA VOLANO |
| 408 | 9434N02 | MPK ELEM.FILTR.K3-K18 |
| 417 | $36531140 | TAPPO SCARICO OLIO |
| 900 | 9434A11 | MPK PIASTRA VALVOLE K18 |
| 901 | 9434B15 | MPK PISTONE-BIELLA K18 |
| 909 | 9434F12 | MPK GUARNIZIONI K18 |
| 911 | 9421509 | KIT FILTRO ARIA |
| 912 | 9434C14 | MPK SEGMENTI K18 |
| 922 | 9434H04 | MPK MANUT.PV K18 |
