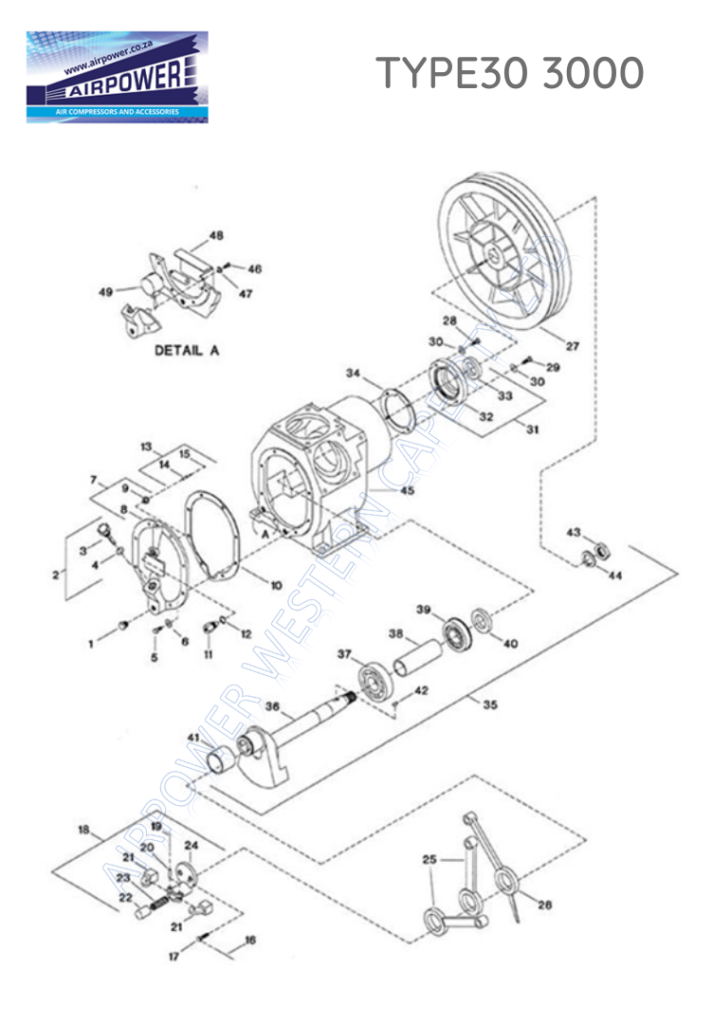

TYPE 30 3000 - Bare Air Compressor Block
This is a bare solid cast iron compressor block (Pump). It is a very old, but reliable design for heavy industrial applications.
Airpower's selection of Type 30 Air Compressor Blocks are all made with quality material for wear and tear parts and aluminum parts.
Flywheel: 540mm X 2SPC
Motor needed: 15 kW-22kW (20hp – 30 hp)
Displacement at 720 rpm 15 kW motor 2238 liter/min.
Displacement at 850 rpm 18.5 kW motor 2646 liter/min.
Displacement at 1100 rpm 22 kW motor 3426 liter/min.
Free air delivery at 720 rpm 1860 liter/min
Free air delivery at 850 rpm 2172 liter/min
Free air delivery at 1100 rpm 2832 liter/min
Number of pistons: 3
Low-pressure pistons diameter: 140 mm and stroke 102mm
High-pressure piston diameter: 102mm and stroke 102mm
Maximum pressure: 14 bar
What is an Air Compressor Block?
Also called a reciprocating compressor block or bare piston compressor block, a compressor block is the part doing the compression of the air. A piston moving in a reciprocating motion within the cylinder compresses the gas. It is driven by an electric motor or another form of rotation. The pistons are moving up and down and compress the air from atmospheric pressure up to full tank pressure. As the volume decreases the pressure increases. The gas is then pushed out of the cylinder to the next stage of compression or to the discharge connection.
