Chinook K17 for Heavy Industrial Applications
This is a Chinook bare air compressor block (Pump) with solid cast iron wear parts and aluminum parts where heat needs to be dissipated.
Designed for heavy industrial applications.
Flywheel: 320 mm x 1 SPA.
Cylinder: 321 cc.
Motor needed: 1.5 kW to 2.2 kW (2 hp to 3 hp).
Displacement: 321 litre/min at 1000 rpm and 449 litre/min at 1400 rpm.
Free air delivery: 231 litre/min at 1000 rpm and 314 litre/min at 1400 rpm.
Pistons: 2.
Stages: 1.
Maximum pressure: 10 bar.
MORE DETAILS
What is an Air Compressor Block?
Also called a reciprocating compressor block or bare piston compressor block, a compressor block is the part that compresses the air. Pistons move in a reciprocating motion within the cylinder, compressing air from atmospheric pressure up to full tank pressure. The page also contains an Exploded View and a Chinook Service Manual download.

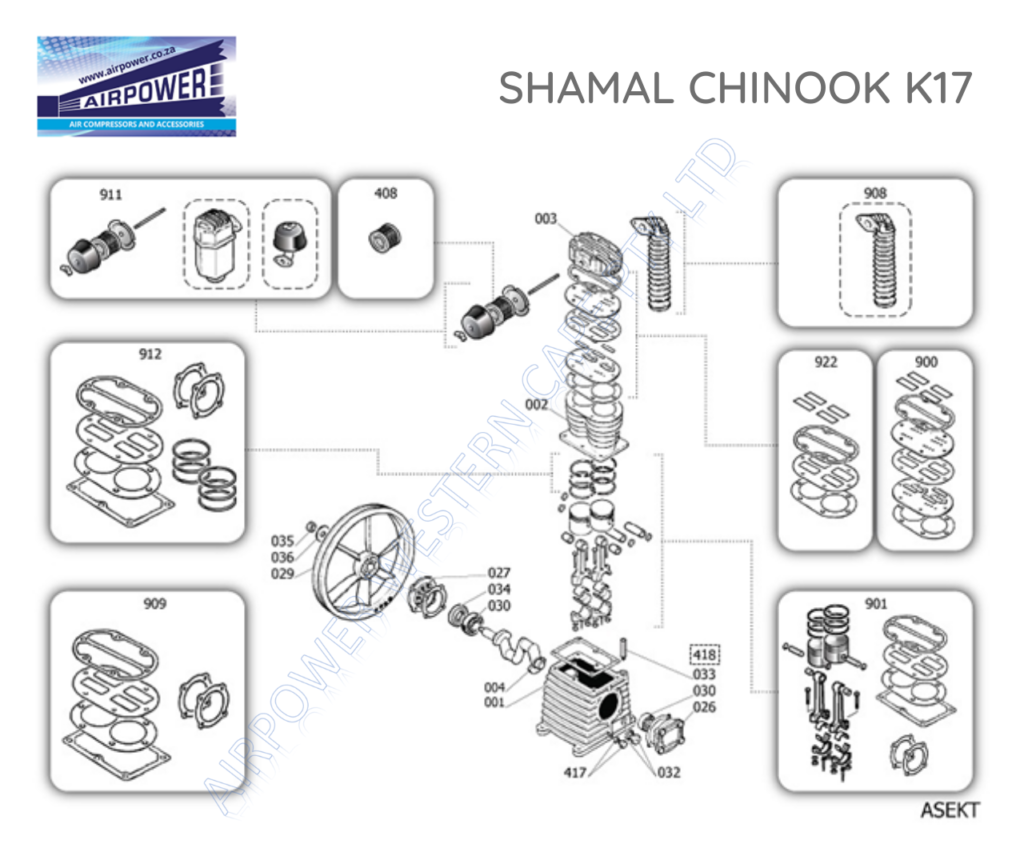

Exploded View
| Position | Code | Description |
|---|---|---|
| 1 | $33101160 | CARTER |
| 2 | $31601010SGL | CILINDRO |
| 3 | SE61400 | TESTA |
| 4 | SC61200 | ALBERO |
| 26 | $30400830 | COPERCHIO ANTERIORE |
| 27 | $30400890 | SUPPORTO POSTERIORE CARTER |
| 29 | $31004680 | VOLANO |
| 30 | $30300030 | CUSCINETTO 6205 C3 |
| 32 | $36531150 | SPIA LIVELLO OLIO |
| 33 | $36507050 | TAPPO OLIO |
| 34 | $30300040 | ANELLO DI TENUTA |
| 35 | $37400720 | VITE VOLANO |
| 36 | $37500730 | RONDELLA VOLANO |
| 408 | 9434N01 | MPK ELEM.FILTR.EXA K17-K50 |
| 417 | $36531140 | TAPPO SCARICO OLIO |
| 900 | 9434A10 | MPK PIASTRA VALVOLE K17 |
| 901 | 9434B14 | MPK PISTONE-BIELLA K17 |
| 909 | 9434F11 | MPK GUARNIZIONI K17 |
| 911 | 9421509 | KIT FILTRO ARIA |
| 912 | 9434C14 | MPK SEGMENTI K17 |
| 922 | 9434H03 | MPK MANUT.PV K17 |
